Bactester MP1
Rapid bacterial detection deviceBACTESTER MP1
Rapid bacterial detection device・Only 5 sec measurement time
・Detection limit = 1 bacteria/sample
・Portable and user friendly
BACTESTER MP1 is a newly developed microorganism rapid detection device manufactured in Japan. It enumerates viable and dead (injured) bacteria in 5seconds by using fluorescent reagent and CMOS censor. As it is portable and easy to use, it enables you to have a test at anytime, anywhere.
Microbial culture is widely used as the standard test method for microbiological testing; however, in HACCP critical control aspects, rapid bacterial counting can support early identification of microbial contamination sources, prevention of contamination spread, and avoidance of product loss and recall risks. BACTESTER MP1 can achieve fast and easy detection of viable and dead bacterial count without microbial culture.
Microbial culture is widely used as the standard test method for microbiological testing; however, in HACCP critical control aspects, rapid bacterial counting can support early identification of microbial contamination sources, prevention of contamination spread, and avoidance of product loss and recall risks. BACTESTER MP1 can achieve fast and easy detection of viable and dead bacterial count without microbial culture.

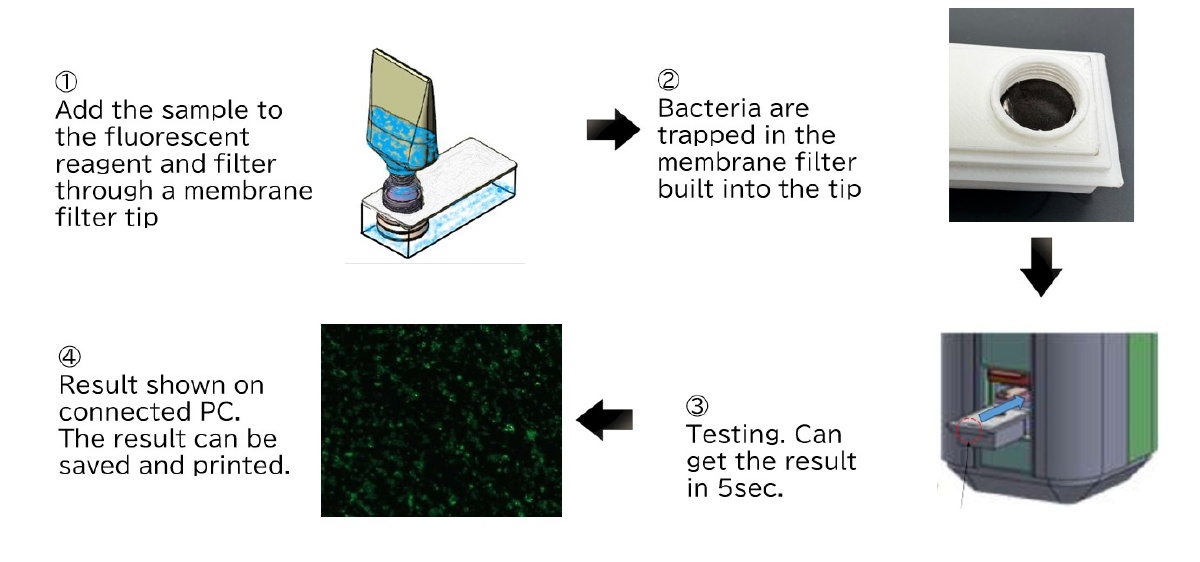

Fast and easy analysis protocol

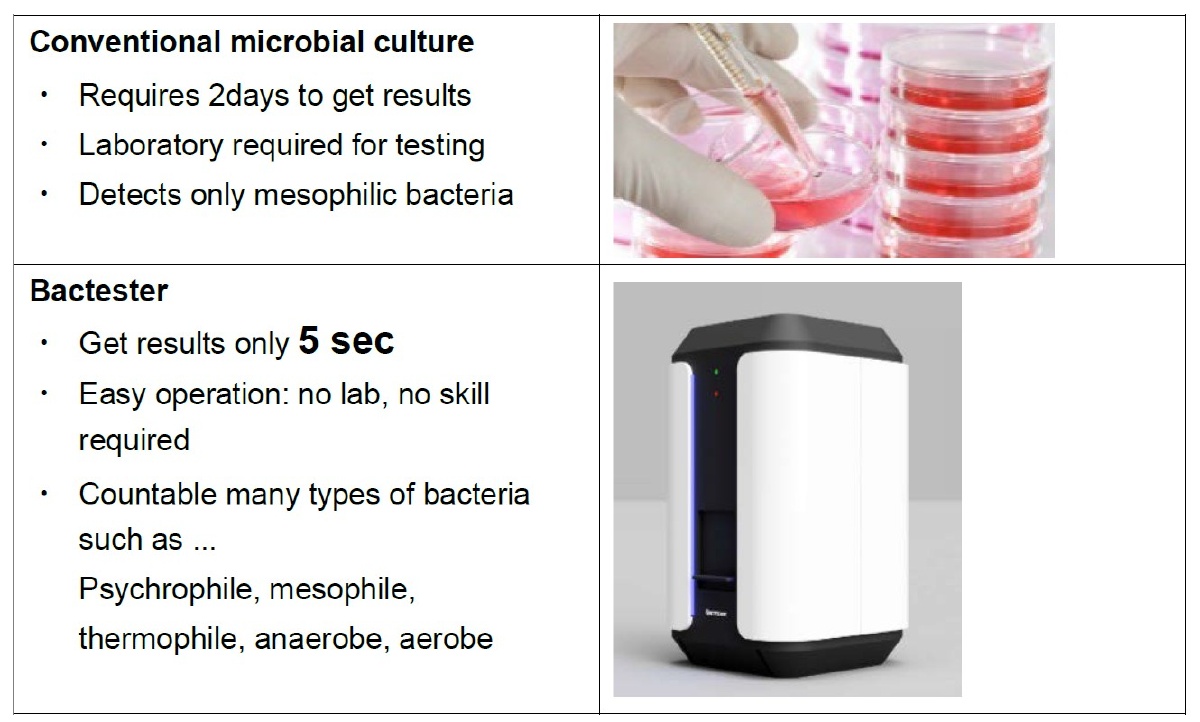

Comparison with conventional microbial culture

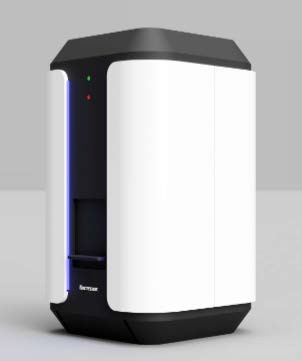

ABOUT BACTESTER MP1
| Basic specification | |
|---|---|
| Dimensions | 148 x 148 x 266 (mm, LxWxH) |
| Weight | 2.4kg (accessories not included) |
| Body material | Resin (ABS), Steel |
| Power supply | USB bus powered: Approx. 4.5W |
| Maximum power | USB bus power: Maximum 4.5W |
| Working condition | Temperature: 15 - 30°C, Humidity: 20% to 90%, No condensation |
| Measurement | |
| Method | Fluorescence method Direct measurement Fully automatic measurement with electronic control |
| Time required | Approximately 5 seconds or less *Depends on PC specifications |
| Timelapse | Video recording of any length (approximately 55 fps) and interval shooting settings are possible |
| Range | 1 - 99,999 bacterial count/mL (depends on measurement conditions) |
| Function | Total bacterial count, viable bacterial count, and damaged bacterial count displayed separately |
| Field view | 3.6 x 4.8 mm |
| Sensor | Back-illuminated CMOS image sensor (4,000 x 3,000 pixels) |
| Excitation | Blue LED for viable bacteria, green LED for damaged bacteria (Made in Japan) |
| Absorption Filter | Bandpass filter for viable bacteria, long-pass filter for damaged bacteria |
| Computer control | |
| Recommended PC and OS | Windows 11, with USB 3.0 Type-C port. |
| Interface | USB 3.1 Type-C connector |
